Pin outs of RAMAC Connectors

Back to Home Page

Apparently this RAMAC unit was lent without schematics or cables. Some of the "exercises" for the students were:

  1. find plugs for the now unusual 4 row plugs on the RAMAC
  2. try to identify the usage of each wire in each of the 4 unusual plugs
  3. wire up required interface cables (now about 8 feet long)
  4. interface to the RAMAC using now commonly available plugs.

The following is the result:

Two connectors of disk select servo input
One connector of high current, noise solenoid, clutch, switch wires
One connector of low current & noise potentiometer excitation & wipers
UPDATE: Oct. 24, 2006 - correction to Track Potentiomenter connections!
See Track Pot Corrections

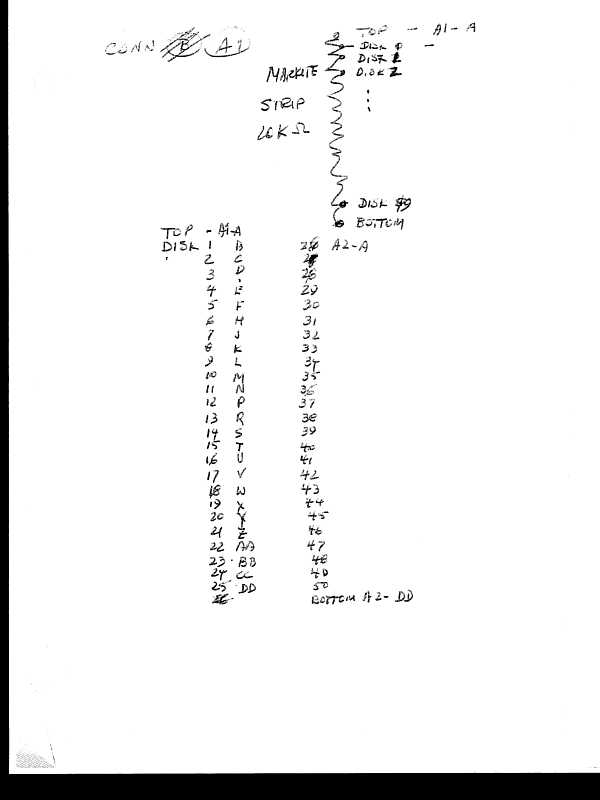

Two connectors of disk select servo input

Connectors to MARKITE (vertical resistive) Strip - 26 K ohms - 52 taps

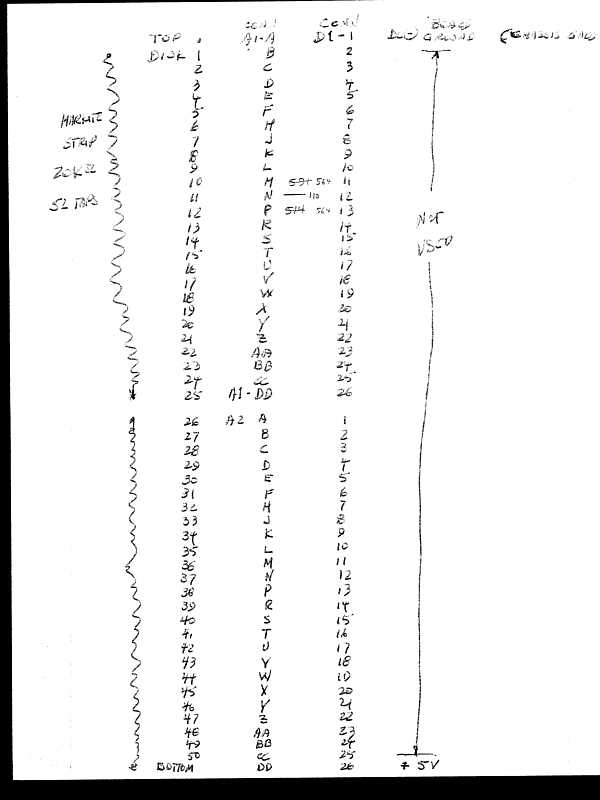

Connectors A1 and A2 Connectors A1 and A2 again

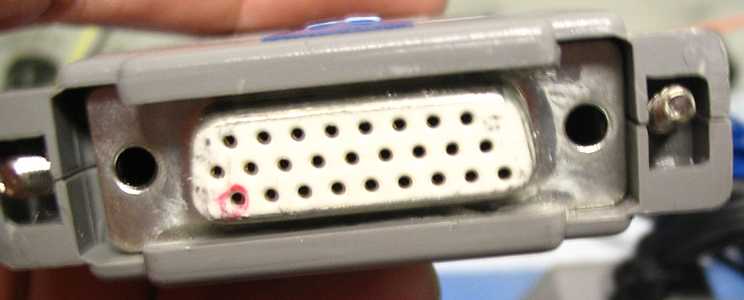

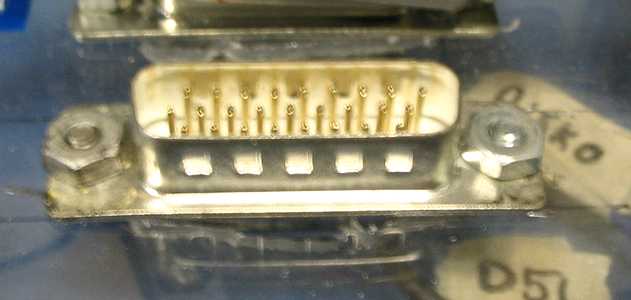

On the student board end, these are called D1 and D2, on the board, D1 is female, D2 is male

TOP A1-ADisk 26 A2-A
Disk 1B " - 27 B
" - 2 C " - 28 C
" - 3 D " - 29 D
" - 4 E " - 30 E
" - 5 F " - 31 F
" - 6 H " - 32 H
" - 7 J " - 33 J
" - 8 K " - 34 K
" - 9 L " - 35 L
" - 10 M " - 36 M
" - 11 N " - 37 N
" - 12 P " - 38 P
" - 13 R " - 39 R
" - 14 S " - 40 S
" - 15 T " - 41 T
" - 16 U " - 42 U
" - 17 V " - 43 V
" - 18 W " - 44 W
" - 19 X " - 45 X
" - 20 Y " - 46 Y
" - 21 Z " - 47 Z
" - 22 AA " - 48 AA
" - 23 BB " - 49 BB
" - 24 CC " - 50 CC
" - 25 DD BOTTOM DD
Notes: as of August 2006
  • "TOP" is the positive end of the resistor
  • IBM (227-3534-0) calls top data disk # 00, the bottom # 49
    - This chart seems to call it Disk 1 through 50
    - The actual top an bottom disks are wind shields

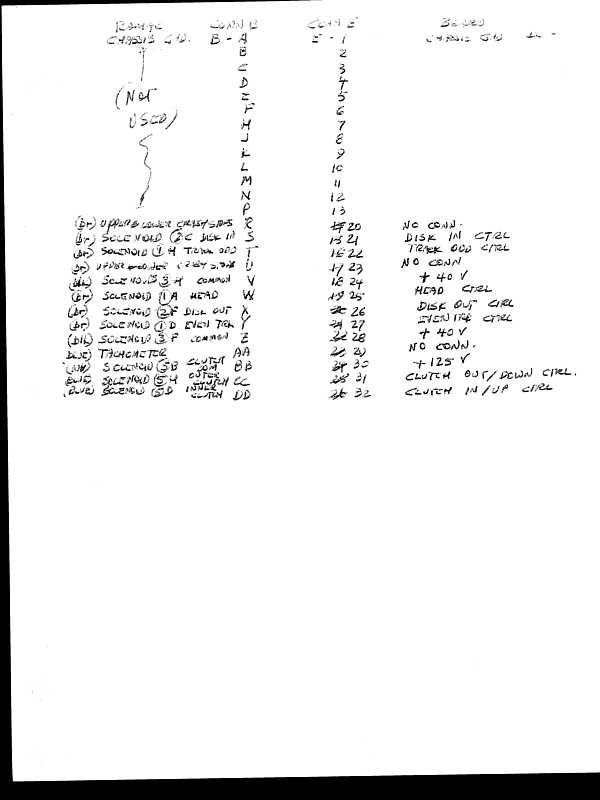

One connector of high current & noise solenoid, clutch, switch wires

Connectors B and E (socket E document used the numbers listed)

pin B-AA does not show which polarity of Tachometer, where is return?
Connectors B and E
Note - on the student end, this male plug is labled "E"
       Comments
Chassis Gnd. B-A Chassis Gnd. E-A - 1
not used B Chassis Gnd. B - 2
" C " C - 3
" D " D - 4
" E " E - 5
" F " F - 6
" H " H - 7
" J " J - 8
" K " K - 9
" L " L - 10
" M " M - 11
" N " N - 12
" P " P - 13
Upper & lower Crash smps ?? R No Conn. R - 20
Solenoid (2) C Disk In S Disk In Ctrl S - 21
Solenoid (1) H Track Odd T Track Odd Ctrl T - 22
Upper ?? Crash S ?? U No Conn. U - 23
Solenoid (3) H Common V + 40 V V - 24
Solenoid (1) A Head W Head Ctrl W - 25
Solenoid (2) F Disk Out X Disk Out Ctrl X - 26
Solenoid (1) D Even Trk Y Even Trk Crtl Y - 27
Solenoid (3) F Common Z + 40 V Z - 28
Tachometer AA No Conn. AA - 29 There is a rumor that the tachometer shared a return with the solenoids - V-24 - was ground? - this may have to be changed?
Solenoid (5) B Clutch Com BB + 125 V BB - 30
Solenoid (5) H Outer Clutch CC Clutch Out/Down Ctrl CC - 31 (Out/Up, as per 227-353-1 page 54)
Solenoid (5) D Inner ClutchDD Clutch In/Up Ctrl DD - 32 (In-Down, as per 227-353-1 page 54)

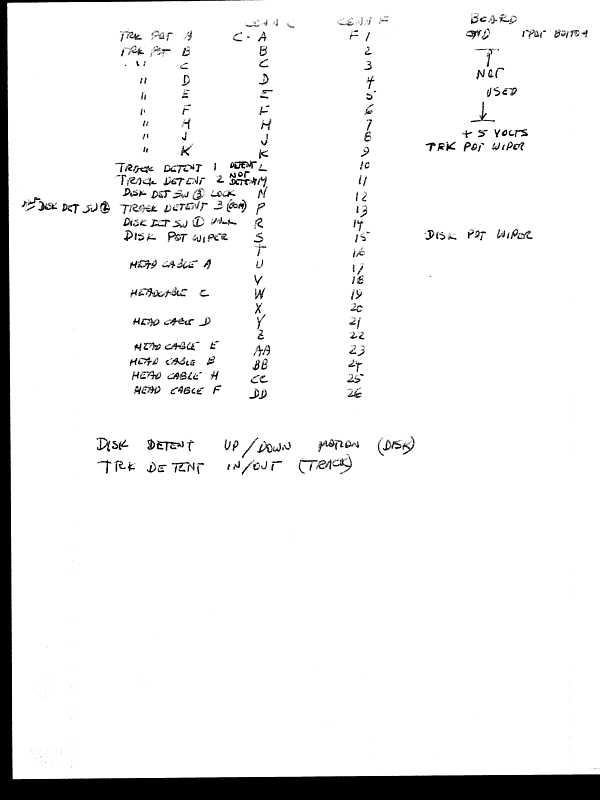

One connector of low current/noise potentiometer excitation & wipers

See Track Pot Corrections

Connectors C and F (socket F document used the numbers listed)

Some items unreadable - Marked with * or ?
Connectors C and F
Note - on the RAMAC, this is labeled "B2", student end, this male plug is labled "F"
Trk Pot A C-A ** ?? F-A - 1
Trk Pot B B Not used B - 2
Trk Pot C C " C - 3
Trk Pot D D " D - 4
Trk Pot E E " E - 5
Trk Pot F F " F - 6
Trk Pot H H " H - 7
Trk Pot J J + 5 volts J - 8
Trk Pot K K Trk Pot Wiper K - 9
Track Detent 1 * L . L - 10
Track Detent 2 * M . M - 11
Disk Det Sw (3) Lock N . N - 12
Track Detent 3 (Com) * P . P - 13
Disk Det Sw (1) VNLK ??* R . R - 14
Disk pot Wiper S Disk Pot Wiper S - 15
. T . T - 16
Head Cable A U . U - 17
. V . V - 18
Head Cable C W . W - 19
. X . X - 20
Head Cable D Y . Y - 21
. Z . Z - 22
Head Cable E AA . AA - 23
Head Cable B BB . BB - 24
Head Cable H CC . CC - 25
Head Cable F DD . DD - 26
TRK Pot A,B,C,D,E,F,H,K - missing G
- ?related to Pot Pins of fig 3.1-4?
which is which?


Text and images from

RAMAC RESTORATION PROJECT
by Cris Hong, Hagop Kozanian
and Neal Rambhia
Senior Design Project
June 9,2004

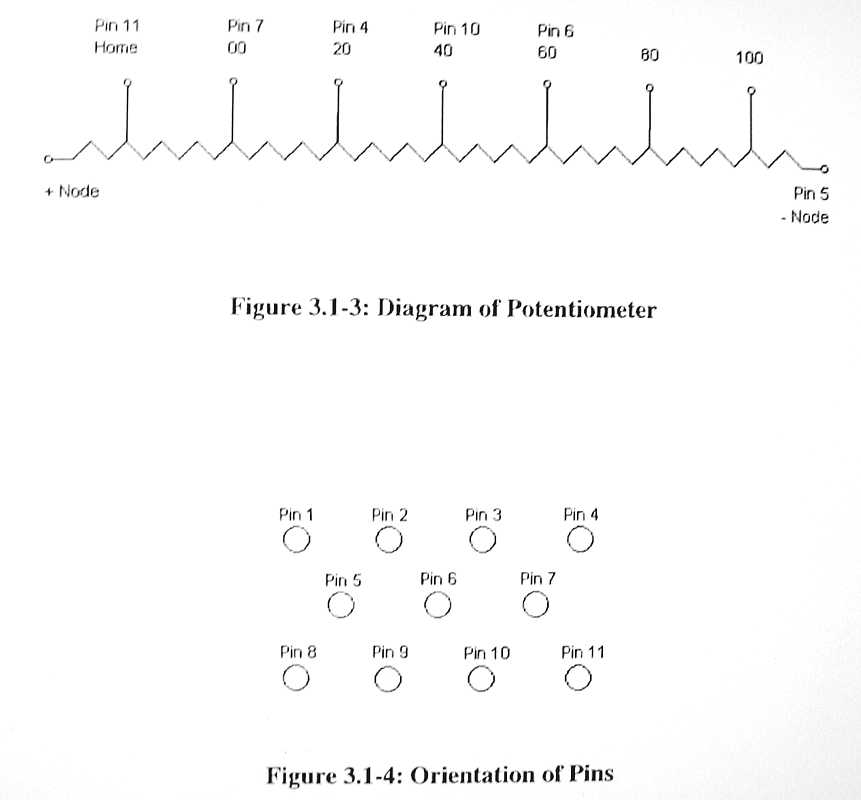

on Page 21

On Page 22

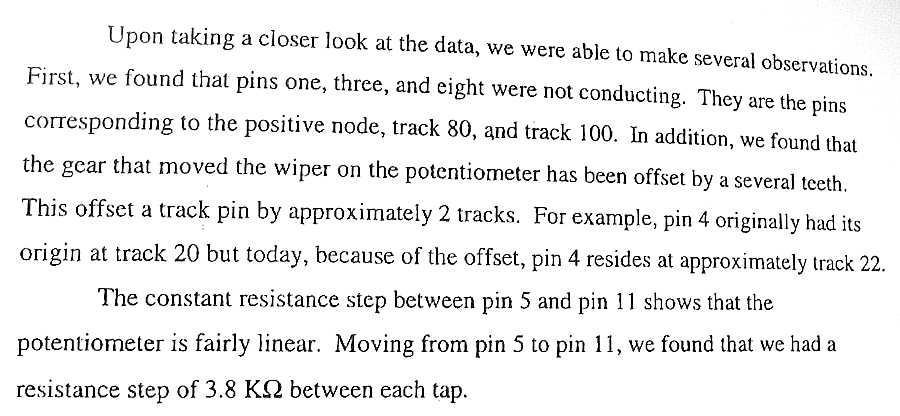

"Upon taking a closer look at the data, we were able to make several obervations.

  1. "We found that pins one, three, and eight were not conduction. They are the points corresponding to the positive node, track 80, and track 100.

  2. "We found that the gear that moved the wiper on the potentiometer has been offset by several teeth. This offset a track pin be approximately 2 tracks. For example, pin 4 originally had its origin at track 20 but today, because of the offset, pin 4 resided at approximately track 22.

  3. "The constant resistance step betweenn pin 5 and pin 11 shows that the potentiomenter is farily linear. Moving from pin 5 to pin 11, we found that we had a resistance step of 3.8 KOhm between each tap."


on Page 22


The implications of the above are:
  • The students must have connected the plus connection to pin 11, HOME
    and used zero volts for HOME
  • There is no way to seek to tracks 60 through 100
    using the original nulling system
    with out repairing the potentiomenter?
  • (Using a voltage setpoint type of servo, all the tracks should be accessable, but linearity may be a challenge. Use a table of correct setpoints? Using HOME position to be slightly above 1 count would possibly work, but very slow recovery from servo overshoot on seek to HOME.)


Head Cable A,B,C,D,E,F,H
- missing G - Relates to the ReadWrite heads, top and bottom
Joe Feng - which is which?

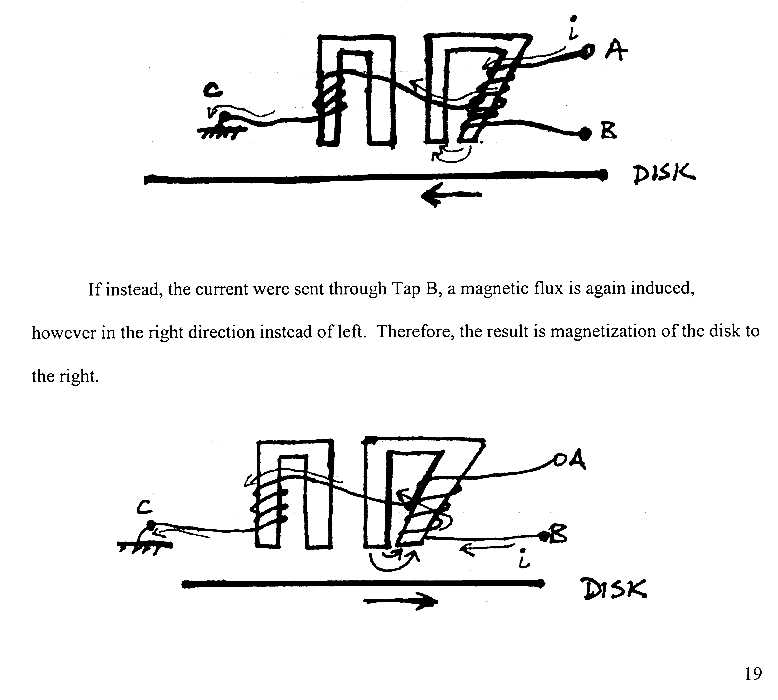

from "Senior Design Project Report-Phase2" - page19

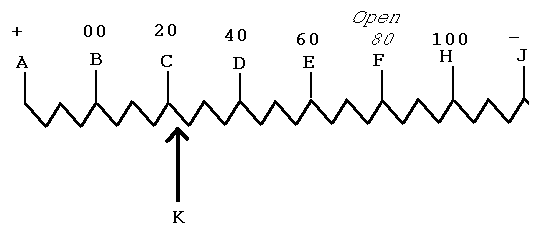

Track Pot Corrections, from Dave Bennet, Oct 24, 2006 - Diagram by Ed Thelen

Good news, Bad news
Hello Team!

Al, Joe and I removed the track pot today. First of all the students did not number the connector pins correctly, most probably because they did not remove the pot as we did. When you do remove the pot and use the connector pin designations it becomes much more logical and it is obvious what we have. The connector is laid out as follows:

     C           A
            B
     F           D
            E
     K           H
            J
     M           L

The students numbered M as pin 1, K as pin 2, F as pin 3, C as pin 4, J as pin 5 and so on. They were on the right track and if they had known the connector pin designations it would have been as obvious to them as it is to us. Pin A is not "home" as they thought, but is rather the + node. There is no "home" tap. As Al quotes the Wes Dickinson paper, home is derived from an external adjustable network. This accounts for the fact that there are only 9 wires in the pot interface, whereas if there were a home tap, 10 wires would be required.

New fact number 2, there is only one open tap, not 2 or 3 as the students thought. The open tap is track 80. They did not mention anything for pin H, that they called pin 9, but it is connected and it is track 100.

Here's what we have:
     A is positive node
     B is track 00
     C is track 20
     D is track 40
     E is track 60
     F is OPEN, should be track 80
     H is track 100   It is GOOD
     J is negative node
     K is the wiper
     L and M are not used

At least this is a logical pin numbering system as you would expect.

Readings from pin A are as follows:

     A to B  4.67K
     A to C  8.53 K
     A to D  12.35 K
     A to E  16.19 K
     A to F  OPEN
     A to H  23.72 K
     A to J  24.40 K

     A to B  4.67 K
     B to C  4.14 K
     C to D  4.10 K
     D to E  4.10 K
     E to F  OPEN
     F to H  OPEN
     H to J   954 ohms

Since my meter does not seem to be completely accurate and to check the linearity in a way to include pin H, I checked resistances accross two nodes:
     B to D  7.97 K
     C to E  7.94 K
     E to H  7.82 K
So I think we are good except that one tap is open.

Now for the bad news:

The potted "arm" that connects the back of the pot to the 11 pin connector appears to be potted in place. I took out the 3 screws apparently holding it in place and it did not budge. Consequently, I believe that servicing the pot, no matter who does it, would require destroying the potted arm and the wiring inside it. I'm sure that we could find someone who could make us a mold BEFORE we destroy the old potting so that it could be replaced after the pot is repaired, but I think it would be a lot harder to do after the existing potting is destroyed, probably resulting in an appearance issue.

Then Dave gave some task assignments relative to the above findings.
