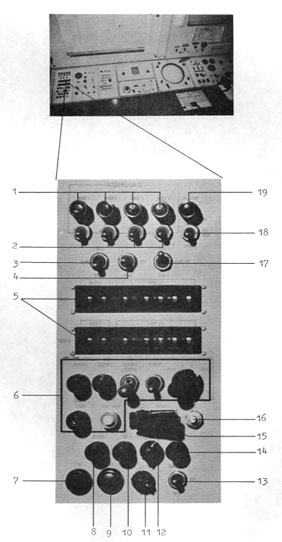

IFC IFF (Identification Friend or Foe) Panel

This unit showed IFF controls and status

  1. INTERROGATE - MODE 1, MODE 2, MODE 3 and MODE 4
  2. INTERROGATE - MODE 1, MODE 2, MODE 3 and MODE 4
  3. BASIC- RAW- DECODE
  4. TEST- OFF- MOM
  5. CODE I, CODE II
  6. none
  7. ON
  8. POWER
  9. OFF
  10. HV
  11. GAIN
  12. HIPAR/LOPAR (selection off HIPAR or LOPAR)
  13. CHALLENGE OFF-MOM
  14. RF
  15. FRIEND
  16. FOE
  17. CODE I, CODE I + II, CODE II
  18. DEF PROC
  19. OVERHEAT

Image and text from Rolf Goerigk
