Launcher Control Trailer (LCT), expanded

This trailer (above ground) provides:

View from entrance of Launcher Control Trailer.
From left to right, cabinet, desk, three mast sections stored on wall, another cabinet (next to hidden furnace), control panel

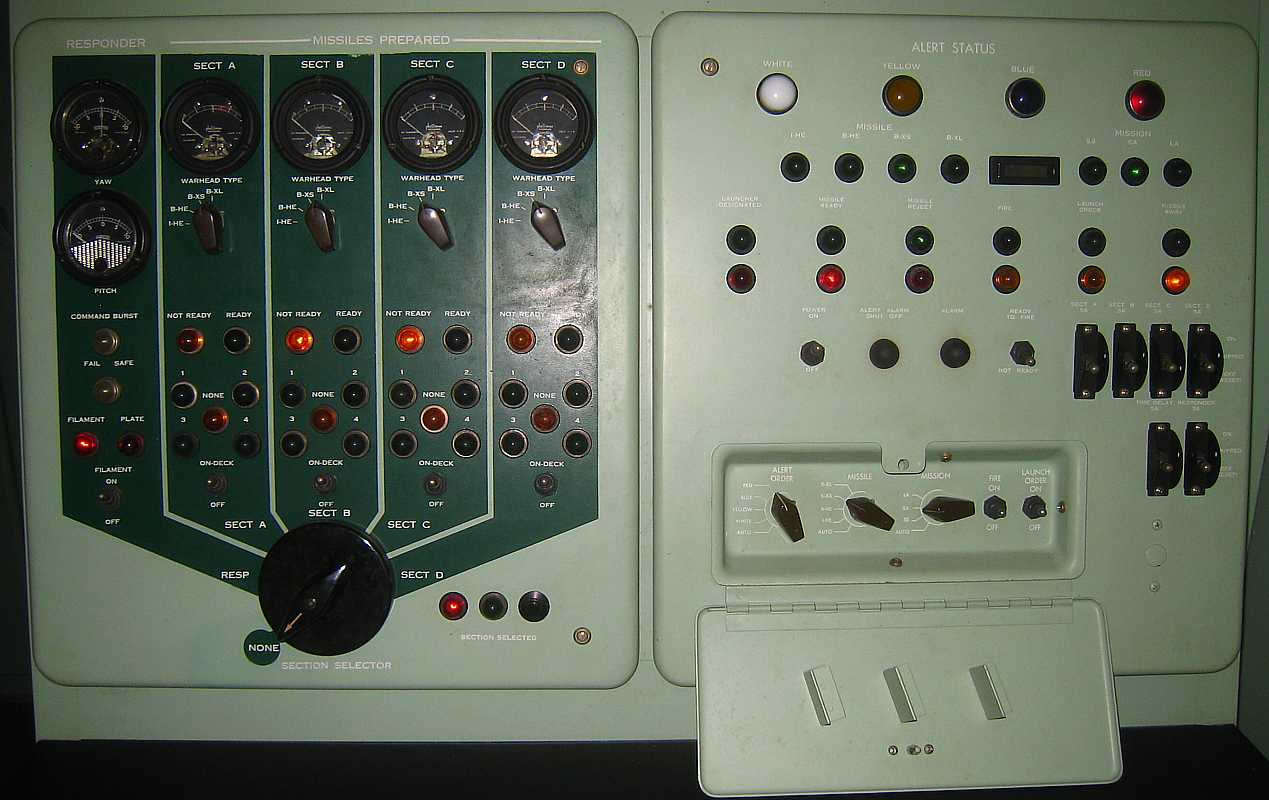

Control Panel
- Left side - Selects Transponder on Test Mast or one of 4 magazines
- Right side - you tell me ;-))

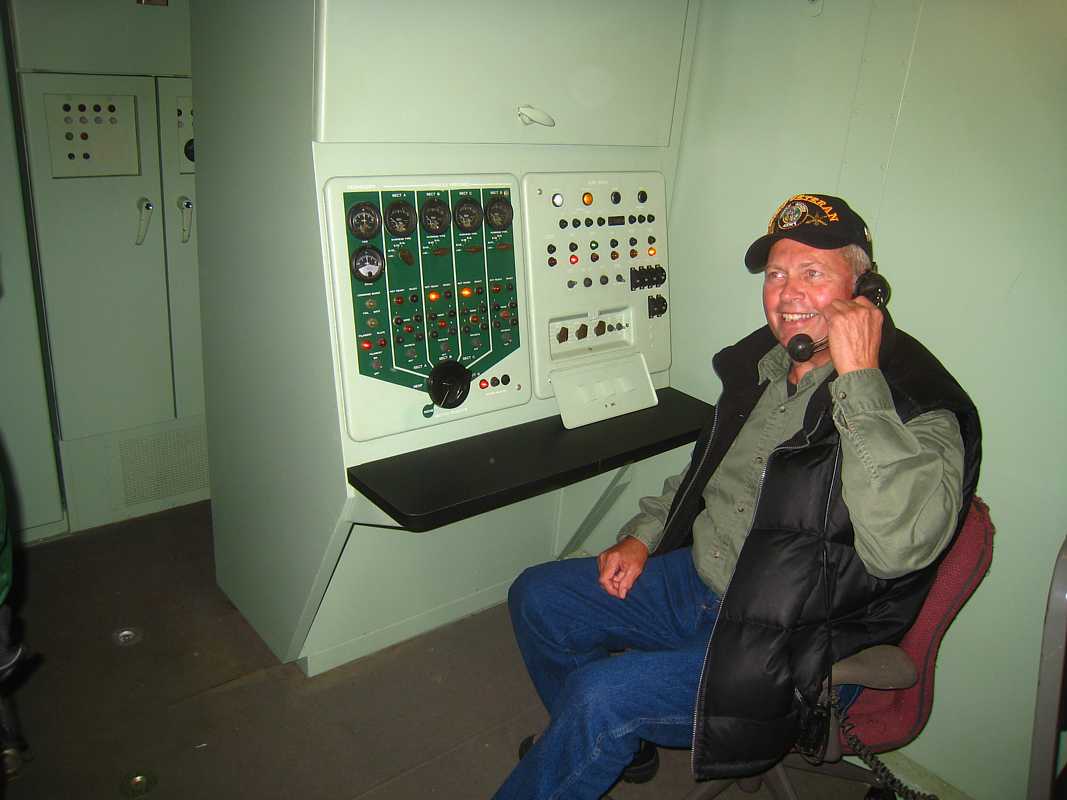

A little human interest ;-))
The previously hidden furnace and ventilation control cabinet is in the background.

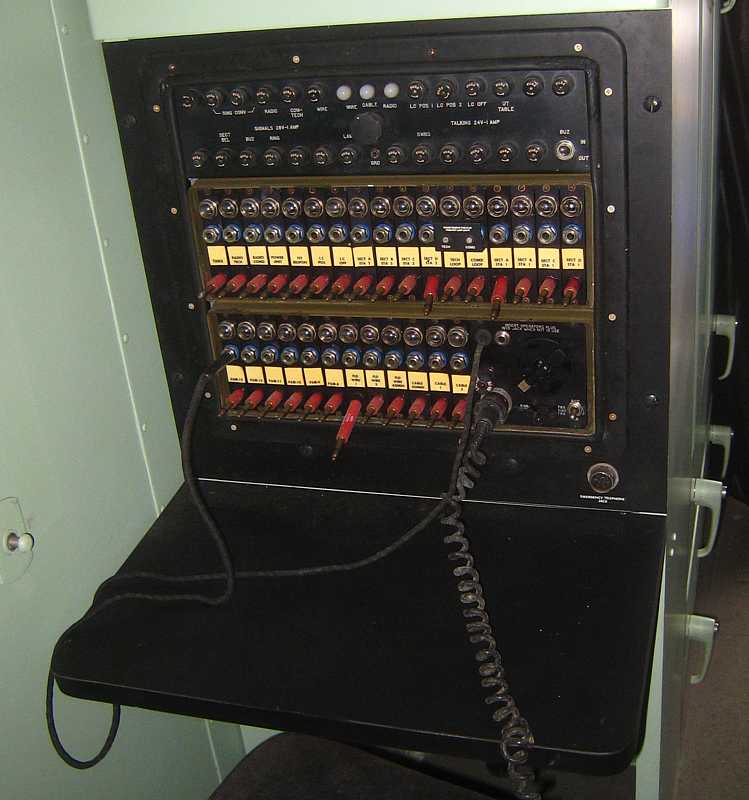

Switchboard, links with IFC, magazines, administrative area, ....

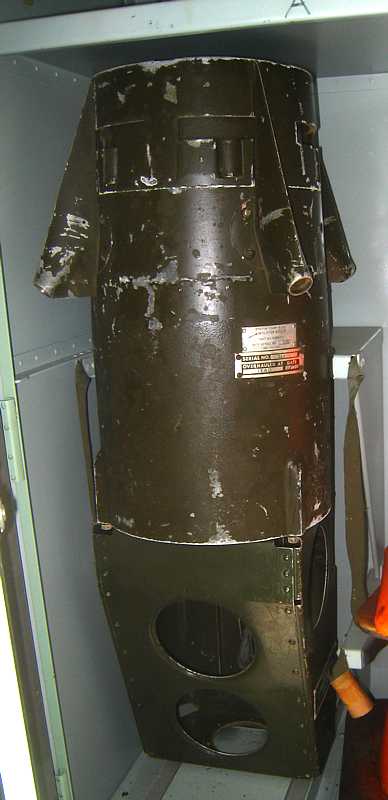

This Nike Ajax looks and responds like an Ajax missile, to provide an easy good "test missile" for the Missile Tracking Radar in the IFC

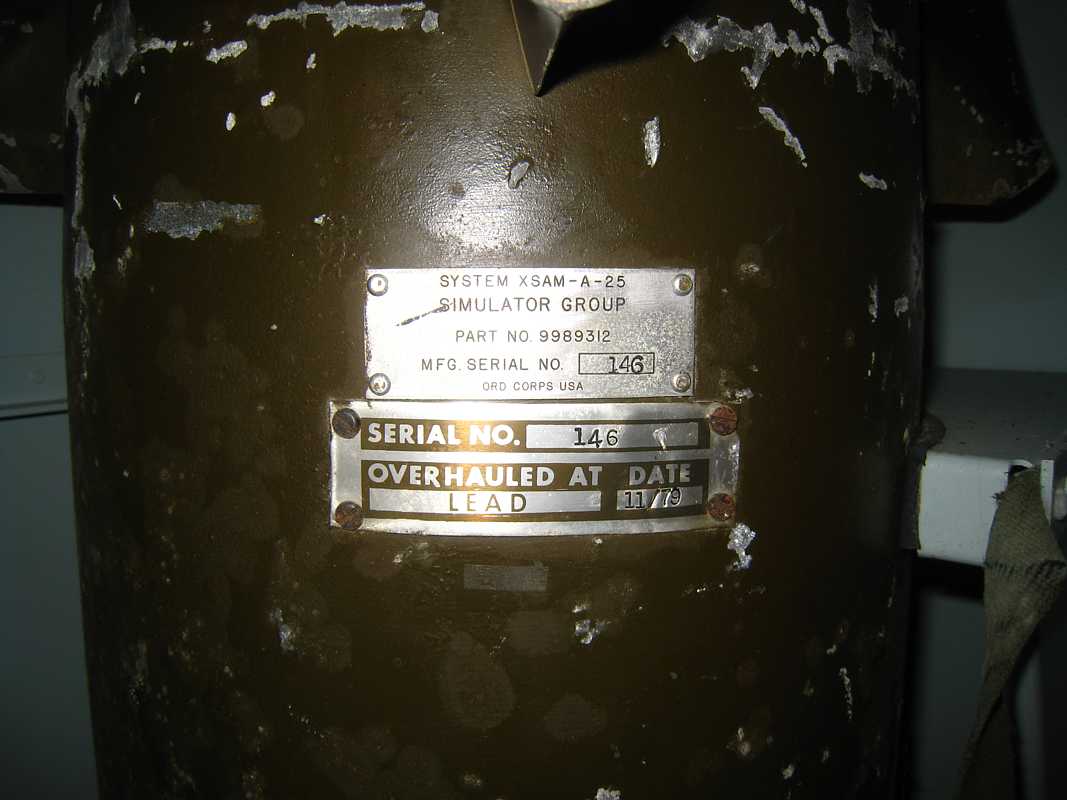

A view of the tag on the Test Mast Transponder

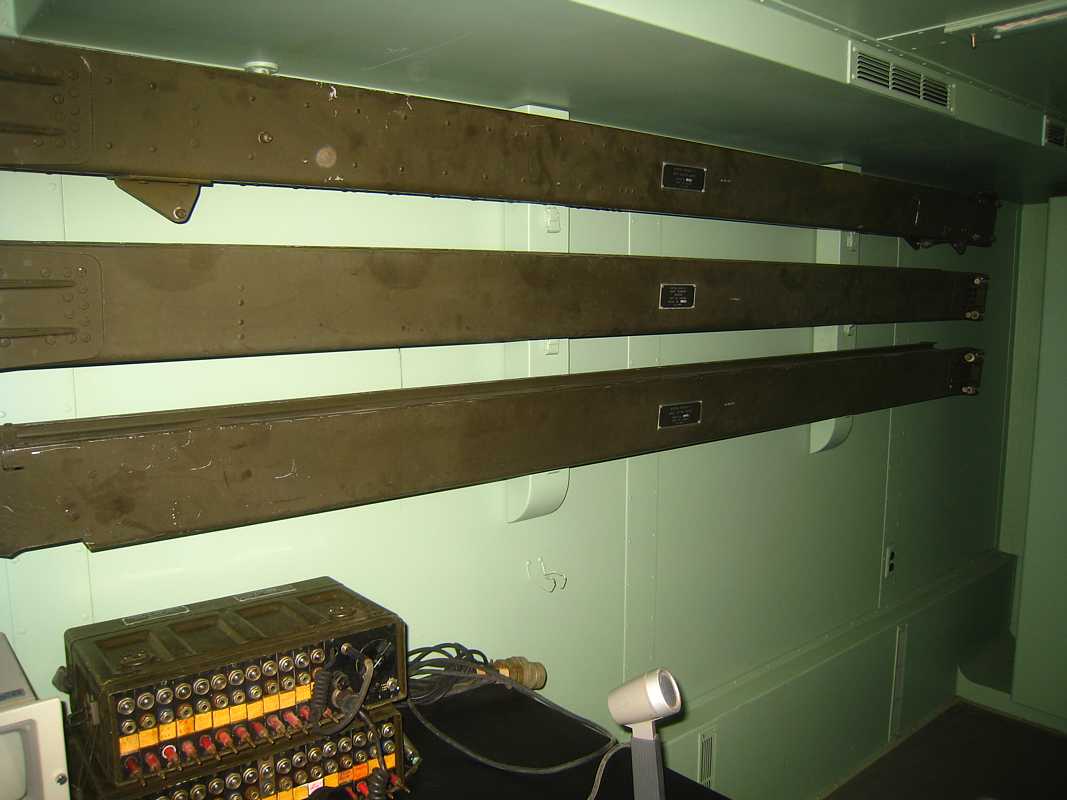

The mast (in storage) to support the Test Mast Transponder above the LCT
