Missile Launcher Frame (stripped)

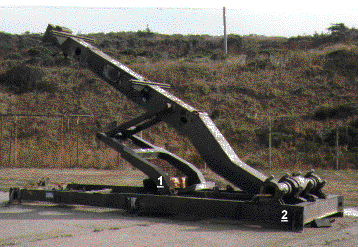

This shows the structure of the launcher elevating mechanism.

To raise the arm normally, large hydraulic cylinders between the yoke (marked "1") and the back of the launch frame (marked "2") are presurized.
