(V) NOMENCLATURE FOR TYPE CLASSIFIED ITEMS IN THE BASIC NIKE HERCULES AIR DEFENSE
GUIDED MISSILE SYSTEM
SOURCE: OTCM's 36763, 10 Apr 58; 36833, 10 Jul 58,
ANSWER: The effective range of a surface-to-air guided missile depends upon several things
other than the distance to which the missile can be fired. Among these are the reflective
characteristics of the target, the target speed and even the target altitude. The exact
performance of a weapon is classified. Therefore, we release only a nominal figure. The
figure for the range of the NIKE HERCULES is "over 75 NM". Comparable figures for BOMARC
are "over 200 NM" for the early model and "over 400 NM" for the advanced model.
ANSWER: Both missiles are supersonic. They have more than adequate speed to attack any
known type of manned aircraft and will have a margin of speed advantage over any
foreseeable manned aircraft.
ANSWER: Both missiles have adequate altitude capabilities to cope with any known or
foreseeable manned aircraft. The BOMARC has air breathing engines and is therefore
confined to atmosphere which will support combustion. The NIKE HERCULES is powered
by solid propellant rocket and can operate at even higher altitude.
ANSWER: The basic conception for the air defense of the United Stares is a defense
in depth. Such a defense can subject invading aircraft to continuous attack of
increasing severity as they approach a target area. Under this concept enemy aircraft
detected by our early warning radar would first be attacked by manned interceptors.
They would next be attacked by the BOMARC guided missiles and manned interceptors.
Any which succeeded in approaching critical areas defended by NIKE HERCULES would come
under attack by that system as well as BOMARC and manned interceptors. Both NIKE HERCULES
and BOMARC would normally be assigned targets by the semi-automatic ground environment
system known as SAGE where that system is available. NIKE HERCULES can be operated
autonomously, that is, it is self sufficient and can operate either with or without
SAGE. BOMARC is designed for fast reaction by being integrated with SAGE.
ANSWER: Specific test data is classified. Both the NIKE HERCULES and the early BOMARC
have passed through their development tests and have been launched by troops trained for
operational units. During these tests each system has successfully intercepted high
performance jet target drones. These test firings and troop training shots have
demonstrated that both systems are very effective. There is an improved version of
BOMARC still in development.
ANSWER: First of all, personnel are selected for a guided missile unit only if they meet
specified criteria. Those who are to have technical responsibilities are then given
special training courses. The Army trains technicians for the NIKE HERCULES units in
schools established at Fort Bliss, Texas, and at Fort Belvoir, Virginia. Courses for
the various specialties range from 8 to 51 weeks in duration. The Air Force currently
conducts similar individual training of specialists at the Boeing plant in Seattle,
Washington. This training program will be transferred to an Air Training Command school
at Chanute Air Force Base.
ANSWER: A battalion of four batteries of HERCULES requires about 150 acres in fee and
about 350 acres in easement, for a total of about 500 acres.
A BOMARC squadron with approximately the same number of missiles requires about
70 acres in fee and about 30 acres in easement, for a total of about 100 acres.
As most HERCULES units are replacing NIKE AJAX units, few additional land acquisitions
will be required.
BOMARC will be installed on military owned property, where possible. Where military
property is not available sites will be located some distance from cities which will
minimize interference with civilian activities.
ANSWER: The safeguards included in both of these weapons and in the launching site
arrangement make the chances of hazard to their civilian neighbors virtually impossible.
In addition to the safeguards built into the equipment and into the launching site
arrangement - the personnel who will man and handle the equipment are carefully screened
and thoroughly trained. Moreover, the units are given thorough periodic inspections both
to assure that the safety features of the equipment are operational, and that the
established procedures are followed.
ANSWER: A comparison of these two missile systems on a unit cost basis can be very
misleading. While BOMARC does cost more per unit than does the NIKE HERCULES, it can
reach out and defend a larger area than can the NIKE HERCULES. Each has its advantages
and disadvantages. A defense comprised of both systems takes advantage of the desirable
characteristics of both weapons systems. Actual cost figures are classified inasmuch as
arithmetic could be applied to available contract information to produce approximations
of our existing and planned missile stocks.
ANSWER: There are HERCULES missiles in 8 operational NIKE units in the U.S. today.
Additional NIKE ATAX units will be converted to HERCULES units this fiscal year (before
next June). (HERCULES is also being installed overseas. Additional battalions are
scheduled for overseas deployment in the near future. One battalion has arrived and
is being turned over to the Chinese Nationalists in Taiwan.)
Four BOMARC sites are now under construction. Construction of additional sites is
planned for this fiscal year.
SITE CONSTRUCTION & DEPLOYMENT OF CONUS (ARADCOM) UNITS (U)

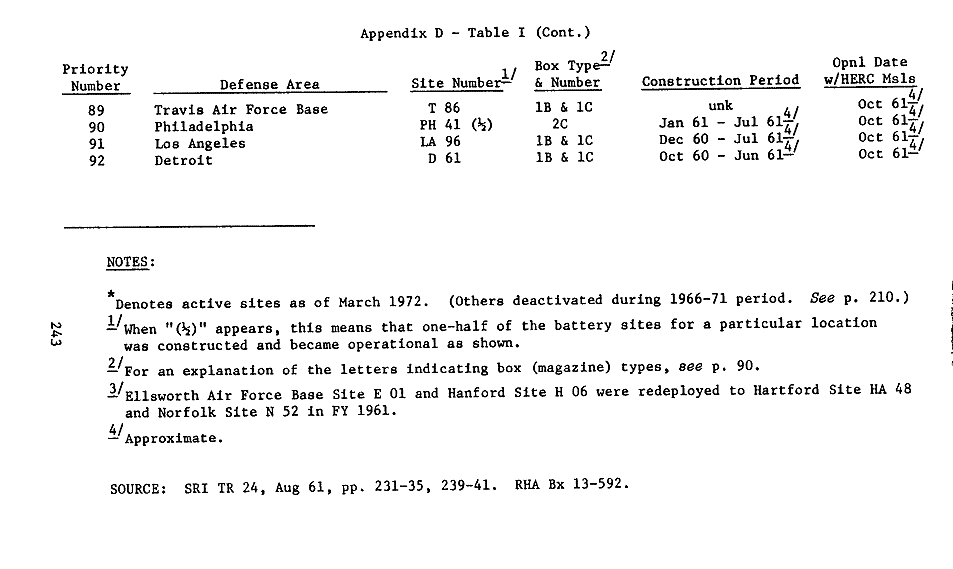

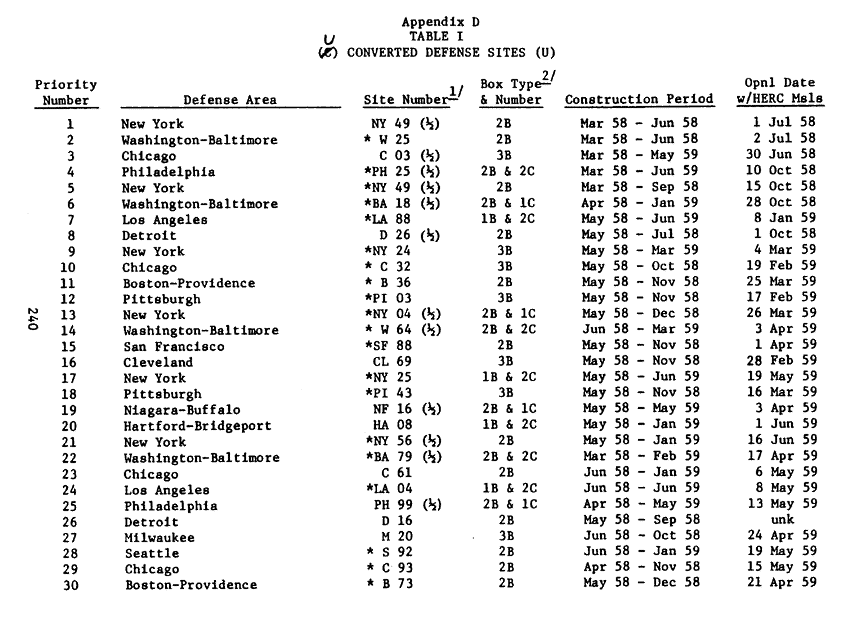

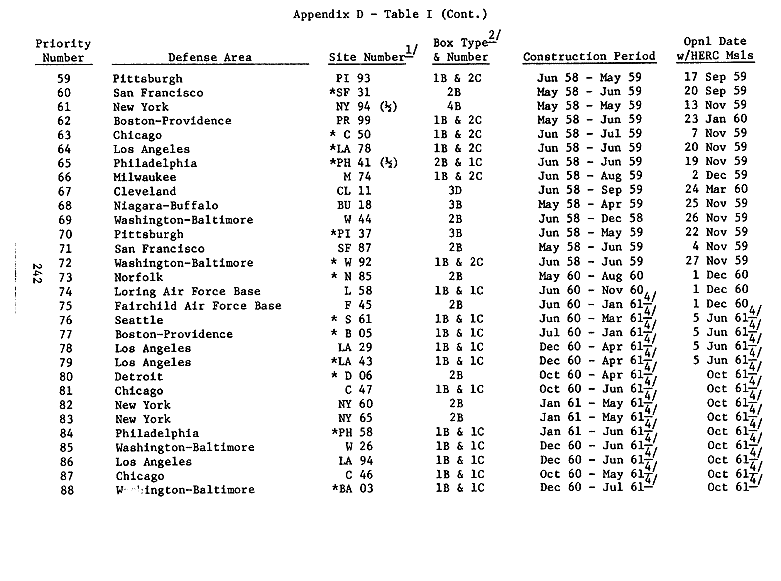

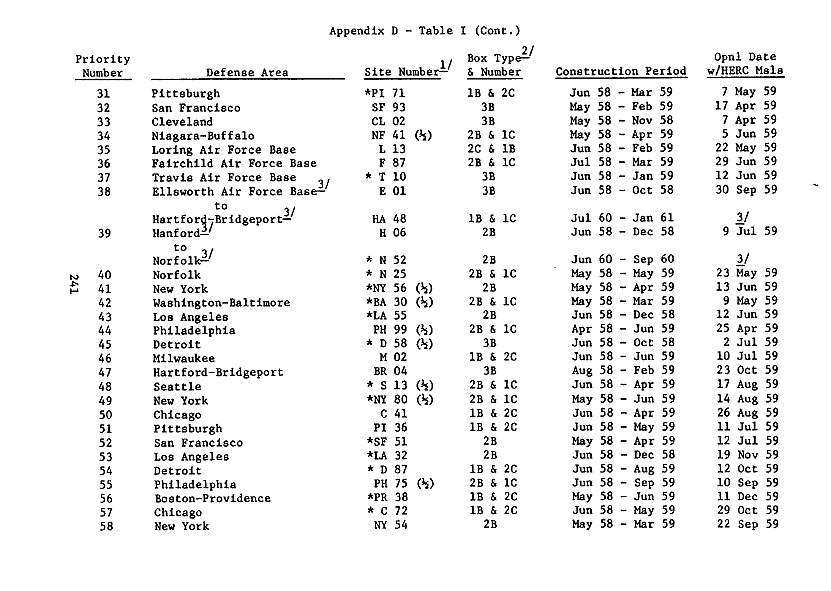

Table I. Converted Defense Sites

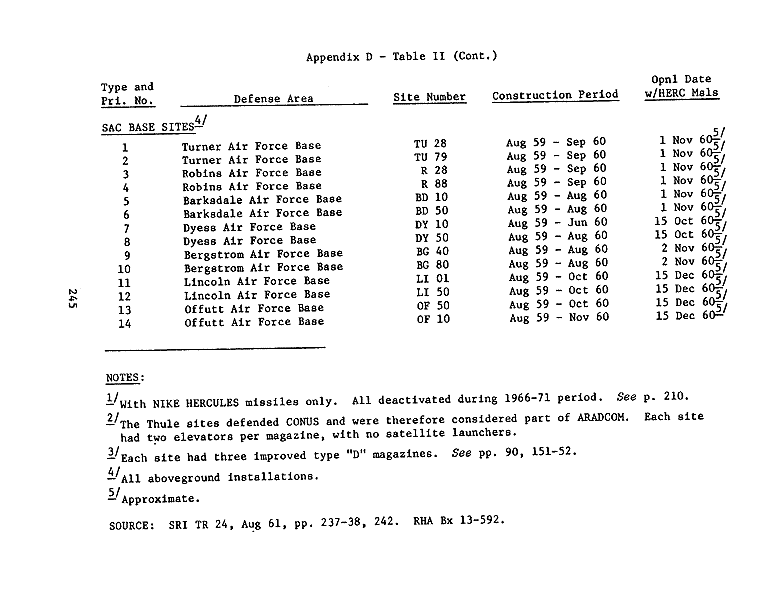

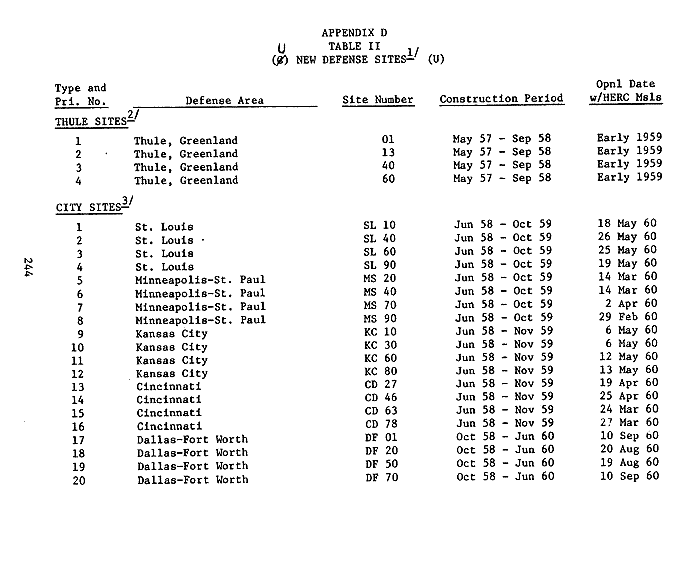

Table II. New Defense Sites
Go to top of Page
NOTE: The servicing items developed for use with the liquid propellant HERCULES missile
have been deleted from the List. (The liquid propellant sustainer motor was replaced by
the M30 solid propellant motor.)
